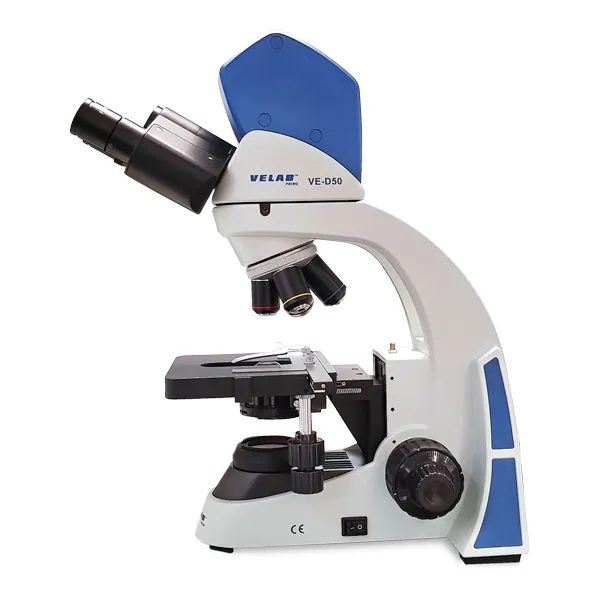

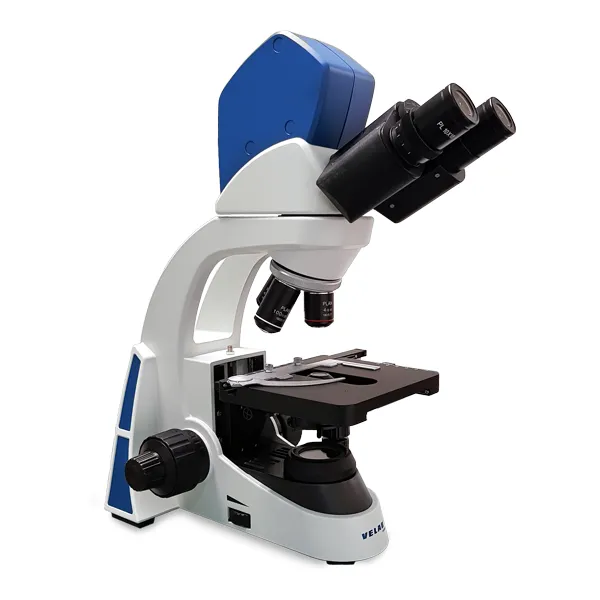

Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.
Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment
Especifications
| Eyepieces | PL 10X/18 mm. |
| Nosepieces | Quadruple. |
| Objectives | 4X, 10X, 40X (S) 100X (Oil) (S). |
| Optical System | Plan Achromatic |
| Stage | Double layer with coaxial movement X-Y, 140 x 132 mm / 5.5” x 5.1”. |
| Condenser | Abbe, A.N 1.25. |
| Diaphragm | Iris type with filter holder. |
| Focus | Coarse and fine anti-slip control knob (precision 0.002 mm). |
| Ilumination | LED 3W. |
| Dimensions | 220 x 418 x 320 mm / 8.6” x 16.4” x 12.5” |
| Power supply | 110/240V, 50/60 Hz AC adapter. |
| Main Features | Interpupillary distance of 50 - 75 mm. Diopter adjustment ±5 in one eyepieces. Heads inclined at 30 °. Stative, robust and reinforced. Easy to transport. Plates with vernier, millimeter scale and calipers. Objectives with colored rings. Lighting with intensity adjustment. Siendentopf type binocular heads. Siendentopf type binocular heads and 3.0 MP integrated camera. It includes software for operating and advanced digital analysis. |
| Applications | Education: Upper grade levels |
| Accessories Included | Dust cover USB cable and Software |
| Warranty | 10 years |
